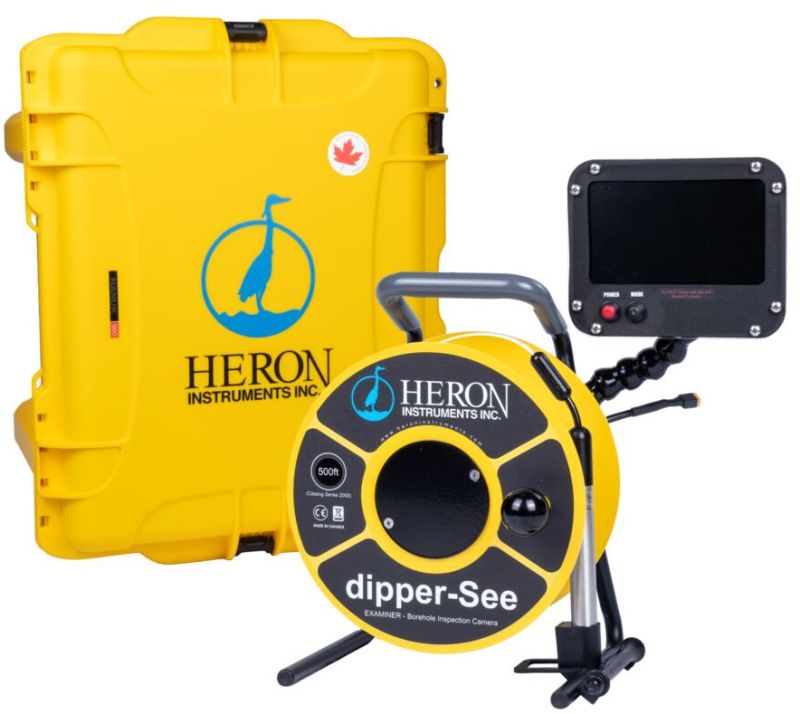

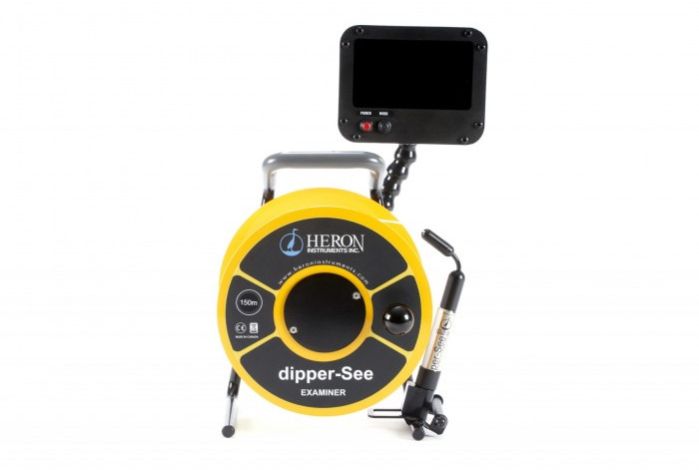

Heron Dipper See Examiner Downhole Inspection Camera

A robust, portable downhole inspection camera designed for visual inspection of wells, boreholes, vertical shafts, open water bodies, and narrow tubes (≥ 1″ / 25 mm diameter). This is a self-contained reel-based system with a submersible camera probe, on-board monitor, and recording capabilities. The unit is housed in a rugged wheeled case for field mobility.

Key Features

·         Submersible camera probe (approx. 25 mm / 1″ diameter) made of 316 marine-grade stainless steel.

·         Sapphire, scratch‑resistant lens for durability.

·         7 ultra-bright LED lights to illuminate dark downhole environments.

·         Wide viewing angle on the probe (160° in some versions) for better coverage.

·         Detachable probe design for easy field replacement / upgrade.

·         7″ full-color LCD monitor (on adjustable arm) for ergonomic viewing.

·         Two rechargeable lithium-ion batteries (3200 mAh each), giving up to 4.5–5 hours of runtime per battery.

·         DVR module with SD‑card support (32 GB included) to record video + audio.

·         Microphone input (3.5 mm jack) for voice notes while recording.

·         Built-in centralizer to keep camera probe stable in the well.

·         Retrieval hook for lightweight items / probes.

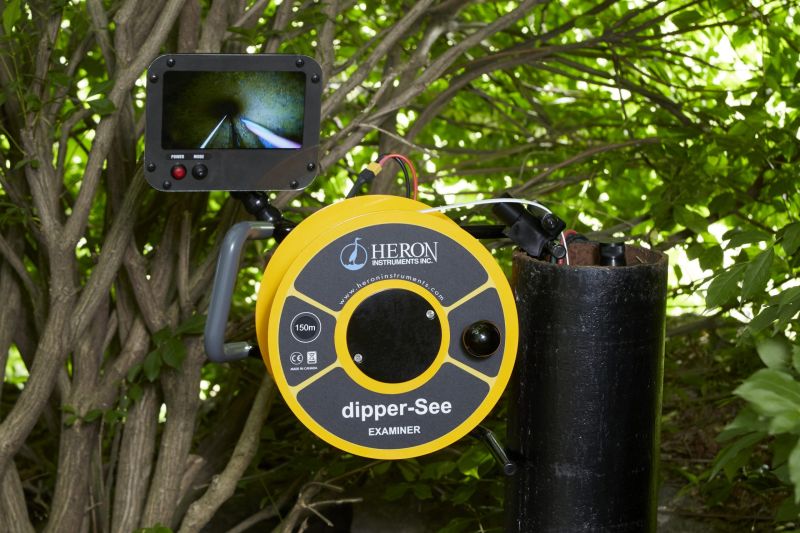

·         Built-in hanging bracket on frame so the system can be supported at the wellhead (hands-free).

·         Reel with marked polyethylene cable (4 conductors) for depth measurement.

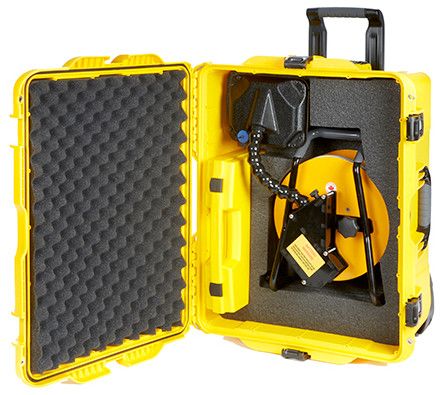

·         Tough, wheeled transport case for field mobility and protection.

·         Modular design: many parts (probe, cable, monitor) are field-replaceable / serviceable.
